RHNCONFIGREVISION

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
REVISION	NUMBER(38)	N
CONFIG_FILE_ID	NUMBER(38)	N
CONFIG_CONTENT_ID	NUMBER(38)	Y
CONFIG_INFO_ID	NUMBER(38)	N
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
CONFIG_FILE_TYPE_ID	NUMBER(38)	N	(1)
CHANGED_BY_ID	NUMBER(38)	Y	(null)

Primary key:

Constraint Name	Columns
RHN_CONFREVISION_ID_PK	ID

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_CONFREVISION_CCID_FK	CONFIG_CONTENT_ID	RHNCONFIGCONTENT	RHN_CONFCONTENT_ID_PK	NO ACTION
RHN_CONFREVISION_CFID_FK	CONFIG_FILE_ID	RHNCONFIGFILE	RHN_CONFFILE_ID_PK	NO ACTION
RHN_CONFREVISION_CID_FK	CHANGED_BY_ID	WEB_CONTACT	WEB_CONTACT_PK	NO ACTION
RHN_CONFREVISION_CIID_FK	CONFIG_INFO_ID	RHNCONFIGINFO	RHN_CONFINFO_ID_PK	NO ACTION
RHN_CONF_REV_CFTI_FK	CONFIG_FILE_TYPE_ID	RHNCONFIGFILETYPE	RHN_CONFFILETYPE_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_CONFREVISION_CCID_IDX	NORMAL	NONUNIQUE	CONFIG_CONTENT_ID	DDL script
RHN_CONFREVISION_CFID_REV_UQ	NORMAL	UNIQUE	CONFIG_FILE_ID , REVISION	DDL script
RHN_CONFREVISION_ID_PK	NORMAL	UNIQUE	ID	DDL script

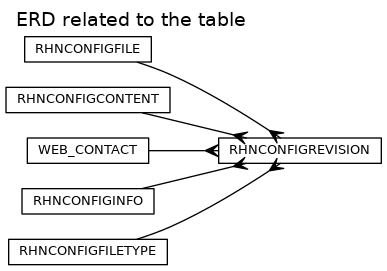

Referenced by:

Table	Constraint
RHNACTIONCONFIGFILENAME	RHN_ACTIONCF_NAME_CRID_FK
RHNACTIONCONFIGREVISION	RHN_ACTIONCR_CRID_FK
RHNCONFIGFILE	RHN_CONFFILE_LCRID_FK
RHNSNAPSHOTCONFIGREVISION	RHN_SNAPSHOTCR_CRID_FK

Triggers

RHN_CONFREVISION_DEL_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_confrevision_del_trig
before delete on rhnConfigRevision
for each row

REFERENCING NEW AS NEW OLD AS OLD
declare
        cr_removed number := lookup_snapshot_invalid_reason('cr_removed');
begin
        update rhnSnapshot
           set invalid = cr_removed
         where id in (select snapshot_id
                        from rhnSnapshotConfigRevision
                       where config_revision_id = :old.id);
        delete from rhnSnapshotConfigRevision
         where config_revision_id = :old.id;
end;

RHN_CONFREVISION_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_confrevision_mod_trig
before insert or update on rhnConfigRevision
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := current_timestamp;
end;
