RHNCONFIGFILE

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
CONFIG_CHANNEL_ID	NUMBER(38)	N
CONFIG_FILE_NAME_ID	NUMBER(38)	N
LATEST_CONFIG_REVISION_ID	NUMBER(38)	Y
STATE_ID	NUMBER(38)	N
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

Primary key:

Constraint Name	Columns
RHN_CONFFILE_ID_PK	ID

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_CONFFILE_CCID_FK	CONFIG_CHANNEL_ID	RHNCONFIGCHANNEL	RHN_CONFCHAN_ID_PK	NO ACTION
RHN_CONFFILE_CFNID_FK	CONFIG_FILE_NAME_ID	RHNCONFIGFILENAME	RHN_CFNAME_ID_PK	NO ACTION
RHN_CONFFILE_LCRID_FK	LATEST_CONFIG_REVISION_ID	RHNCONFIGREVISION	RHN_CONFREVISION_ID_PK	SET NULL
RHN_CONFFILE_SID_FK	STATE_ID	RHNCONFIGFILESTATE	RHN_CFSTATE_ID_PK	NO ACTION

Unique Keys:

Constraint name	Columns
RHN_CONFFILE_CCID_CFNID_UQ	CONFIG_CHANNEL_ID , CONFIG_FILE_NAME_ID

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_CNF_FL_LCRID_IDX	NORMAL	NONUNIQUE	LATEST_CONFIG_REVISION_ID	DDL script
RHN_CONFFILE_CC_CFN_S_IDX	NORMAL	NONUNIQUE	CONFIG_CHANNEL_ID , CONFIG_FILE_NAME_ID , STATE_ID	DDL script
RHN_CONFFILE_ID_PK	NORMAL	UNIQUE	ID	DDL script

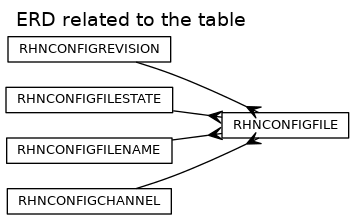

Referenced by:

Table	Constraint
RHNCONFIGREVISION	RHN_CONFREVISION_CFID_FK

Triggers

RHN_CONFFILE_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_conffile_mod_trig
before insert or update on rhnConfigFile
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := current_timestamp;
end;
