RHNACTIONCONFIGFILENAME

DDL script

Columns

NameTypeNullableDefault valueComment
ACTION_IDNUMBER(38)N
SERVER_IDNUMBER(38)N
CONFIG_FILE_NAME_IDNUMBER(38)N
CONFIG_REVISION_IDNUMBER(38)Y
FAILURE_IDNUMBER(38)Y
CREATEDTIMESTAMP(6) WITH LOCAL TIME ZONEN(current_timestamp)
MODIFIEDTIMESTAMP(6) WITH LOCAL TIME ZONEN(current_timestamp)

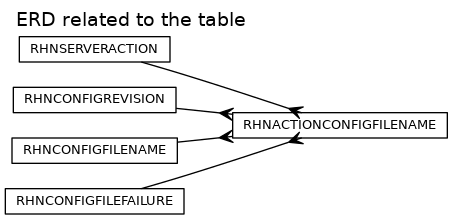

Foreign Keys:

Constraint NameColumnsReferenced tableReferenced ConstraintOn Delete Rule
RHN_ACTIONCF_FAILURE_ID_FKFAILURE_ID RHNCONFIGFILEFAILURE RHN_CONFFILE_FAIL_ID_PK NO ACTION
RHN_ACTIONCF_NAME_AID_SID_FKSERVER_ID , ACTION_ID RHNSERVERACTION RHN_SERVER_ACTION_SID_AID_UQ CASCADE
RHN_ACTIONCF_NAME_CFNID_FKCONFIG_FILE_NAME_ID RHNCONFIGFILENAME RHN_CFNAME_ID_PK NO ACTION
RHN_ACTIONCF_NAME_CRID_FKCONFIG_REVISION_ID RHNCONFIGREVISION RHN_CONFREVISION_ID_PK SET NULL

Options:

OptionSettings
TablespaceUSERS
Index OrganizedNo
Generated by OracleNo
ClusteredNo
NestedNo
TemporaryNo

Indexes:

Index NameTypeUnuquenessColumnsDDL script
RHN_ACTIONCF_NAME_ASC_UQNORMALUNIQUEACTION_ID , SERVER_ID , CONFIG_FILE_NAME_ID DDL script
RHN_ACTIONCF_NAME_SID_IDXNORMALNONUNIQUESERVER_ID DDL script
RHN_ACT_CNFG_FN_CRID_IDXNORMALNONUNIQUECONFIG_REVISION_ID DDL script

Triggers

RHN_ACTIONCF_NAME_MOD_TRIG

Legend: comment string keyword reserved word operator
CREATE TRIGGER
rhn_actioncf_name_mod_trig
before insert or update on rhnActionConfigFileName
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := current_timestamp;
end;
