Spacewalk DB Schema - Table-RHNSERVERACTION

Main Tables Views Materialized Views Indexes Constraints Triggers Procedures Functions Packages Sequences Java Sources Jobs Sanity Check Index DDL scrips

Description Columns Primary key Check Constraints Foreign keys Unique Keys Options Indexes Referenced by Triggers Partitions

RHNSERVERACTION

DDL script

Columns

Name	Type	Nullable	Default value
SERVER_ID	NUMBER(38)	N
ACTION_ID	NUMBER(38)	N
STATUS	NUMBER(38)	N
RESULT_CODE	NUMBER(38)	Y
RESULT_MSG	VARCHAR2(1024)	Y
PICKUP_TIME	TIMESTAMP(6) WITH LOCAL TIME ZONE	Y
REMAINING_TRIES	NUMBER(38)	N	(5)
COMPLETION_TIME	TIMESTAMP(6) WITH LOCAL TIME ZONE	Y
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

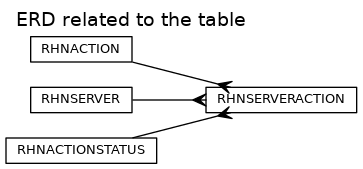

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SERVER_ACTION_AID_FK	ACTION_ID	RHNACTION	RHN_ACTION_PK	CASCADE
RHN_SERVER_ACTION_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION
RHN_SERVER_ACTION_STATUS_FK	STATUS	RHNACTIONSTATUS	RHN_ACTION_STATUS_PK	NO ACTION

Unique Keys:

Constraint name	Columns
RHN_SERVER_ACTION_SID_AID_UQ	SERVER_ID , ACTION_ID

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SER_ACT_AID_IDX	NORMAL	NONUNIQUE	ACTION_ID	DDL script
RHN_SER_ACT_SID_AID_S_IDX	NORMAL	NONUNIQUE	SERVER_ID , ACTION_ID , STATUS	DDL script

Referenced by:

Table	Constraint
RHNACTIONCONFIGCHANNEL	RHN_ACTIONCC_SID_AID_FK
RHNACTIONCONFIGFILENAME	RHN_ACTIONCF_NAME_AID_SID_FK

Triggers

RHN_SERVER_ACTION_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_server_action_mod_trig
before insert or update on rhnServerAction
for each row

REFERENCING NEW AS NEW OLD AS OLD
declare
	handle_status	number;
begin
	:new.modified := current_timestamp;
	handle_status := 0;
	if updating then
		if :new.status != :old.status then
			handle_status := 1;
		end if;
	else
		handle_status := 1;
	end if;

	if handle_status = 1 then
		if :new.status = 1 then
			:new.pickup_time := current_timestamp;
		elsif :new.status = 2 then
			:new.completion_time := current_timestamp;
		end if;
	end if;
end;
