RHNUSERGROUPMEMBERS

DDL script

Columns

Name	Type	Nullable	Default value
USER_ID	NUMBER(38)	N
USER_GROUP_ID	NUMBER(38)	N
TEMPORARY	CHAR(1)	N	('N')
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

Check Constraints:

Constraint Name	Check Condition
RHN_UGMEMBERS_T_CK	temporary in ('Y', 'N')

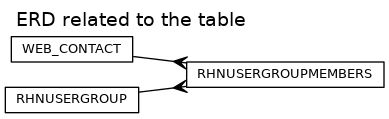

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_UGMEMBERS_UGID_FK	USER_GROUP_ID	RHNUSERGROUP	RHN_USER_GROUP_PK	NO ACTION
RHN_UGMEMBERS_UID_FK	USER_ID	WEB_CONTACT	WEB_CONTACT_PK	CASCADE

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_UGMEMBERS_UGID_IDX	NORMAL	NONUNIQUE	USER_GROUP_ID	DDL script
RHN_UGMEMBERS_UID_UGID_TEMP_UQ	NORMAL	UNIQUE	USER_ID , USER_GROUP_ID , TEMPORARY	DDL script

Triggers

RHN_UG_MEMBER_DEL_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_ug_member_del_trig
before delete on rhnUserGroupMembers
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
        update rhnUserGroup
        set current_members = current_members - 1
        where id = :old.user_group_id;
end;

RHN_UG_MEMBER_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_ug_member_mod_trig
before insert or update on rhnUserGroupMembers
for each row

REFERENCING NEW AS NEW OLD AS OLD
declare
        ug              rhnUserGroup%ROWTYPE;
begin
        :new.modified := current_timestamp;

        if inserting then
                select
                        * into ug
                from
                        rhnUserGroup
                where
                        id = :new.user_group_id;

                if ug.max_members is not null and
                ug.current_members+1 gt; ug.max_members then
                        rhn_exception.raise_exception('usergroup_max_members');
                end if;

                update rhnUserGroup
                set current_members = current_members + 1
                where id = :new.user_group_id;
        end if;
end;

RHN_USER_GROUP_ORG_MAPPING

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_user_group_org_mapping
BEFORE INSERT OR UPDATE ON rhnUserGroupMembers
FOR EACH ROW

REFERENCING NEW AS NEW OLD AS OLD
DECLARE
        same_org        NUMBER;
BEGIN
        same_org := 0;
        SELECT 1 INTO same_org
          FROM web_contact U, rhnUserGroup UG
         WHERE UG.org_id = U.org_id
           AND U.id = :new.user_id
           AND UG.id = :new.user_group_id;

        IF same_org = 0 THEN
          rhn_exception.raise_exception('ugm_different_orgs');
        END IF;
EXCEPTION
        WHEN NO_DATA_FOUND THEN
          rhn_exception.raise_exception('ugm_different_orgs');
END;
