RHNUSERGROUP

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
NAME	VARCHAR2(64)	N
DESCRIPTION	VARCHAR2(1024)	N
MAX_MEMBERS	NUMBER(38)	Y
CURRENT_MEMBERS	NUMBER(38)	N	(0)
GROUP_TYPE	NUMBER(38)	N
ORG_ID	NUMBER(38)	N
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

Primary key:

Constraint Name	Columns
RHN_USER_GROUP_PK	ID

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_USERGROUP_TYPE_FK	GROUP_TYPE	RHNUSERGROUPTYPE	RHN_USERGROUPTYPE_ID_PK	NO ACTION
RHN_USER_GROUP_ORG_FK	ORG_ID	WEB_CUSTOMER	WEB_CUSTOMER_ID_PK	CASCADE

Unique Keys:

Constraint name	Columns
RHN_UG_OID_GT_UQ	ORG_ID , GROUP_TYPE

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_UG_OID_GT_UQ	NORMAL	UNIQUE	ORG_ID , GROUP_TYPE	DDL script
RHN_UG_OID_NAME_UQ	NORMAL	UNIQUE	ORG_ID , NAME	DDL script
RHN_UG_ORG_ID_TYPE_IDX	NORMAL	NONUNIQUE	GROUP_TYPE , ID	DDL script
RHN_USER_GROUP_PK	NORMAL	UNIQUE	ID	DDL script

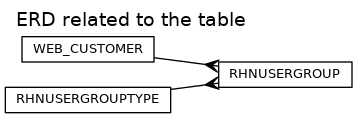

Referenced by:

Table	Constraint
RHNUSERGROUPMEMBERS	RHN_UGMEMBERS_UGID_FK

Triggers

RHN_USER_GROUP_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_user_group_mod_trig
before insert or update on rhnUserGroup
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
        :new.modified := current_timestamp;
end;
