RHNUSEREXTGROUPMAPPING

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
EXT_GROUP_ID	NUMBER(38)	N
INT_GROUP_TYPE_ID	NUMBER(38)	N
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

Primary key:

Constraint Name	Columns
RHN_USEREXTGROUPMAP_ID_PK	ID

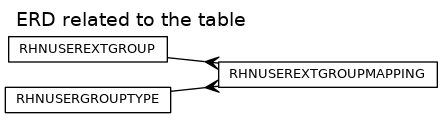

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_USEREXTGROUPMAP_E_FK	EXT_GROUP_ID	RHNUSEREXTGROUP	RHN_USEREXTGROUP_ID_PK	CASCADE
RHN_USEREXTGROUPMAP_I_FK	INT_GROUP_TYPE_ID	RHNUSERGROUPTYPE	RHN_USERGROUPTYPE_ID_PK	CASCADE

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_USEREXTGROUPMAP_EI_UQ	NORMAL	UNIQUE	EXT_GROUP_ID , INT_GROUP_TYPE_ID	DDL script
RHN_USEREXTGROUPMAP_ID_PK	NORMAL	UNIQUE	ID	DDL script

Triggers

RHN_USEREXTGRMAP_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_userextgrmap_mod_trig
before insert or update on rhnUserExtGroupMapping
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
        if :new.id is null then
            select rhn_userextgroupmap_seq.nextval into :new.id from dual;
        end if;
        :new.modified := current_timestamp;
end;
