Spacewalk DB Schema - Table-RHNSERVERCUSTOMDATAVALUE

Main Tables Views Materialized Views Indexes Constraints Triggers Procedures Functions Packages Sequences Java Sources Jobs Sanity Check Index DDL scrips

Description Columns Primary key Check Constraints Foreign keys Unique Keys Options Indexes Referenced by Triggers Partitions

RHNSERVERCUSTOMDATAVALUE

DDL script

Columns

Name	Type	Nullable	Default value
SERVER_ID	NUMBER(38)	N
KEY_ID	NUMBER(38)	N
VALUE	VARCHAR2(4000)	Y
CREATED_BY	NUMBER(38)	Y
LAST_MODIFIED_BY	NUMBER(38)	Y
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

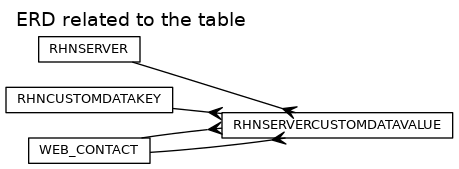

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SCDV_CB_FK	CREATED_BY	WEB_CONTACT	WEB_CONTACT_PK	SET NULL
RHN_SCDV_KID_FK	KEY_ID	RHNCUSTOMDATAKEY	RHN_CDATAKEY_PK	NO ACTION
RHN_SCDV_LMB_FK	LAST_MODIFIED_BY	WEB_CONTACT	WEB_CONTACT_PK	SET NULL
RHN_SCDV_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SCDV_KID_IDX	NORMAL	NONUNIQUE	KEY_ID	DDL script
RHN_SCDV_SID_KID_UQ	NORMAL	UNIQUE	SERVER_ID , KEY_ID	DDL script

Triggers

RHN_SCDV_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_scdv_mod_trig
before insert or update on rhnServerCustomDataValue
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := current_timestamp;
end;
