RHNSERVERACTIONSCRIPTRESULT

DDL script

Columns

Name	Type	Nullable	Default value
SERVER_ID	NUMBER(38)	N
ACTION_SCRIPT_ID	NUMBER(38)	N
OUTPUT	BLOB	Y
START_DATE	TIMESTAMP(6) WITH LOCAL TIME ZONE	N
STOP_DATE	TIMESTAMP(6) WITH LOCAL TIME ZONE	N
RETURN_CODE	NUMBER(38)	N
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

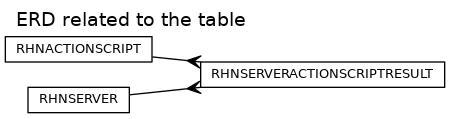

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SERVERAS_RESULT_ASID_FK	ACTION_SCRIPT_ID	RHNACTIONSCRIPT	RHN_ACTSCRIPT_ID_PK	CASCADE
RHN_SERVERAS_RESULT_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SERVERAS_RESULT_ASID_IDX	NORMAL	NONUNIQUE	ACTION_SCRIPT_ID	DDL script
RHN_SERVERAS_RESULT_SAS_UQ	NORMAL	UNIQUE	SERVER_ID , ACTION_SCRIPT_ID	DDL script
SYS_IL0000020793C00003$$	LOB	UNIQUE		DDL script

Triggers

RHN_SERVERAS_RESULT_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_serveras_result_mod_trig
before insert or update on rhnServerActionScriptResult
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := current_timestamp;
end;
