Spacewalk DB Schema - Table-RHNSATELLITEINFO

Main Tables Views Materialized Views Indexes Constraints Triggers Procedures Functions Packages Sequences Java Sources Jobs Sanity Check Index DDL scrips

Description Columns Primary key Check Constraints Foreign keys Unique Keys Options Indexes Referenced by Triggers Partitions

RHNSATELLITEINFO

DDL script

Columns

Name	Type	Nullable	Default value
SERVER_ID	NUMBER(38)	N
EVR_ID	NUMBER(38)	Y
CERT	BLOB	N
PRODUCT	VARCHAR2(256)	N
OWNER	VARCHAR2(256)	N
ISSUED_STRING	VARCHAR2(256)	Y
EXPIRATION_STRING	VARCHAR2(256)	Y
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

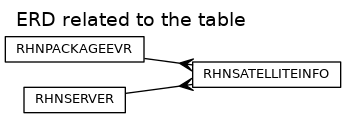

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_SATELLITE_INFO_EID_FK	EVR_ID	RHNPACKAGEEVR	RHN_PE_ID_PK	NO ACTION
RHN_SATELLITE_INFO_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION

Unique Keys:

Constraint name	Columns
RHN_SATELLITE_INFO_SID_UQ	SERVER_ID

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_SATELLITE_INFO_SID_IDX	NORMAL	NONUNIQUE	SERVER_ID	DDL script
SYS_IL0000020783C00003$$	LOB	UNIQUE		DDL script

Triggers

RHN_SATELLITE_INFO_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_satellite_info_mod_trig
before insert or update on rhnSatelliteInfo
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
    :new.modified := current_timestamp;
end;
