Spacewalk DB Schema - Table-RHNPACKAGEFILE

Main Tables Views Materialized Views Indexes Constraints Triggers Procedures Functions Packages Sequences Java Sources Jobs Sanity Check Index DDL scrips

Description Columns Primary key Check Constraints Foreign keys Unique Keys Options Indexes Referenced by Triggers Partitions

RHNPACKAGEFILE

DDL script

Columns

Name	Type	Nullable	Default value
PACKAGE_ID	NUMBER(38)	N
CAPABILITY_ID	NUMBER(38)	N
DEVICE	NUMBER(38)	N
INODE	NUMBER(38)	N
FILE_MODE	NUMBER(38)	N
USERNAME	VARCHAR2(32)	N
GROUPNAME	VARCHAR2(32)	N
RDEV	NUMBER(38)	N
FILE_SIZE	NUMBER(38)	N
MTIME	TIMESTAMP(6) WITH LOCAL TIME ZONE	N
CHECKSUM_ID	NUMBER(38)	Y
LINKTO	VARCHAR2(256)	Y
FLAGS	NUMBER(38)	N
VERIFYFLAGS	NUMBER(38)	N
LANG	VARCHAR2(32)	Y
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

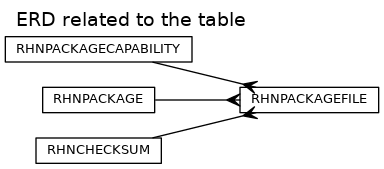

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_PACKAGE_FILE_CHSUM_FK	CHECKSUM_ID	RHNCHECKSUM	RHNCHECKSUM_PK	NO ACTION
RHN_PACKAGE_FILE_CID_FK	CAPABILITY_ID	RHNPACKAGECAPABILITY	RHN_PKG_CAPABILITY_ID_PK	NO ACTION
RHN_PACKAGE_FILE_PID_FK	PACKAGE_ID	RHNPACKAGE	RHN_PACKAGE_ID_PK	CASCADE

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_PACKAGE_FILE_CID_IDX	NORMAL	NONUNIQUE	CAPABILITY_ID	DDL script
RHN_PACKAGE_FILE_PID_CID_UQ	NORMAL	UNIQUE	PACKAGE_ID , CAPABILITY_ID	DDL script

Triggers

RHN_PACKAGEFILE_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_packagefile_mod_trig
before insert or update on rhnPackageFile
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := current_timestamp;
end;
