RHNKICKSTARTIPRANGE

DDL script

Columns

Name	Type	Nullable	Default value
KICKSTART_ID	NUMBER(38)	N
ORG_ID	NUMBER(38)	N
MIN	NUMBER(38)	N
MAX	NUMBER(38)	N
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

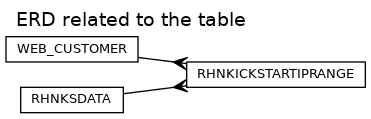

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_KSIP_KSID_FK	KICKSTART_ID	RHNKSDATA	RHN_KS_ID_PK	CASCADE
RHN_KSIP_OID_FK	ORG_ID	WEB_CUSTOMER	WEB_CUSTOMER_ID_PK	CASCADE

Unique Keys:

Constraint name	Columns
RHN_KSIP_OID_MIN_MAX_UQ	ORG_ID , MIN , MAX

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_KSIP_KICKSTART_ID_IDX	NORMAL	NONUNIQUE	KICKSTART_ID	DDL script
RHN_KSIP_OID_MIN_MAX_UQ	NORMAL	UNIQUE	ORG_ID , MIN , MAX	DDL script
RHN_KSIP_ORG_ID_IDX	NORMAL	NONUNIQUE	ORG_ID	DDL script

Triggers

RHN_KSIP_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_ksip_mod_trig
before insert or update on rhnKickstartIPRange
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
        :new.modified := current_timestamp;
end;
