RHNKICKSTARTABLETREE

DDL script

Columns

Name	Type	Nullable	Default value
ID	NUMBER(38)	N
ORG_ID	NUMBER(38)	Y
LABEL	VARCHAR2(64)	N
BASE_PATH	VARCHAR2(256)	N
CHANNEL_ID	NUMBER(38)	N
COBBLER_ID	VARCHAR2(64)	Y
COBBLER_XEN_ID	VARCHAR2(64)	Y
BOOT_IMAGE	VARCHAR2(128)	Y	('spacewalk-koan')
KSTREE_TYPE	NUMBER(38)	N
INSTALL_TYPE	NUMBER(38)	N
KERNEL_OPTIONS	VARCHAR2(256)	Y
KERNEL_OPTIONS_POST	VARCHAR2(256)	Y
LAST_MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

Primary key:

Constraint Name	Columns
RHN_KSTREE_ID_PK	ID

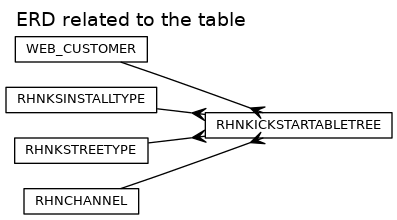

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_KSTREE_CID_FK	CHANNEL_ID	RHNCHANNEL	RHN_CHANNEL_ID_PK	CASCADE
RHN_KSTREE_IT_FK	INSTALL_TYPE	RHNKSINSTALLTYPE	RHN_KSINSTALLTYPE_ID_PK	NO ACTION
RHN_KSTREE_KSTREETYPE_FK	KSTREE_TYPE	RHNKSTREETYPE	RHN_KSTREETYPE_ID_PK	NO ACTION
RHN_KSTREE_OID_FK	ORG_ID	WEB_CUSTOMER	WEB_CUSTOMER_ID_PK	CASCADE

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_KSTREE_ID_PK	NORMAL	UNIQUE	ID	DDL script
RHN_KSTREE_OID_LABEL_UQ	NORMAL	UNIQUE	ORG_ID , LABEL	DDL script

Referenced by:

Table	Constraint
RHNKICKSTARTDEFAULTS	RHN_KSD_KSTID_FK
RHNKSTREEFILE	RHN_KSTREEFILE_KID_FK
RHNKICKSTARTSESSION	RHN_KS_SESSION_KSTID_FK

Triggers

RHN_KSTREE_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_kstree_mod_trig
before insert or update on rhnKickstartableTree
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
     -- Basically if we're changing something other than cobbler_id,
     -- cobbler_xen_id, and last_modified - or if last_modified is
     -- explicity set to null. Gets complicated because we have
     -- to allow for the possibility of the ids being null
     if ((not :old.cobbler_id is null and :new.cobbler_id = :old.cobbler_id) or
            (:old.cobbler_id is null and :new.cobbler_id is null)) and
        ((not :old.cobbler_xen_id is null and :new.cobbler_xen_id = :old.cobbler_xen_id) or
            (:old.cobbler_xen_id is null and :new.cobbler_xen_id is null)) and
        (:new.last_modified = :old.last_modified) or
        (:new.last_modified is null ) then
             :new.last_modified := current_timestamp;
     end if;

	:new.modified := current_timestamp;
end rhn_kstree_mod_trig;
