RHNCLIENTCAPABILITY

DDL script

Columns

Name	Type	Nullable	Default value
SERVER_ID	NUMBER(38)	N
CAPABILITY_NAME_ID	NUMBER(38)	N
VERSION	VARCHAR2(32)	N
CREATED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)
MODIFIED	TIMESTAMP(6) WITH LOCAL TIME ZONE	N	(current_timestamp)

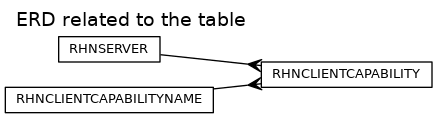

Foreign Keys:

Constraint Name	Columns	Referenced table	Referenced Constraint	On Delete Rule
RHN_CLIENTCAP_CAP_NID_FK	CAPABILITY_NAME_ID	RHNCLIENTCAPABILITYNAME	RHN_CLIENTCAPNAM_ID_PK	NO ACTION
RHN_CLIENTCAP_SID_FK	SERVER_ID	RHNSERVER	RHN_SERVER_ID_PK	NO ACTION

Options:

Option	Settings
Tablespace	USERS
Index Organized	No
Generated by Oracle	No
Clustered	No
Nested	No
Temporary	No

Indexes:

Index Name	Type	Unuqueness	Columns	DDL script
RHN_CLIENTCAP_SID_CAP_UQ	NORMAL	UNIQUE	SERVER_ID , CAPABILITY_NAME_ID	DDL script

Triggers

RHN_CLIENTCAP_MOD_TRIG

Legend: comment string keyword reserved word operator

CREATE TRIGGER
rhn_clientcap_mod_trig
before insert or update on rhnClientCapability
for each row

REFERENCING NEW AS NEW OLD AS OLD
begin
	:new.modified := current_timestamp;
end;
